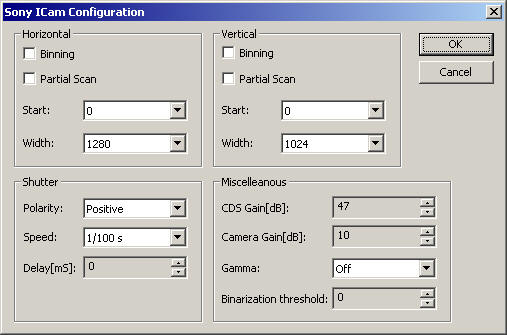

• Binning

Horizontal binning combines image data for every two horizontal pixels for increased sensitivity. Vertical binning combines image data for every two lines for increased sensitivity and frame rate.

• Partial scan

It is possible to use partial scan to reduce size of image data. Within the limits of the native resolution of 1280x1024 pixels, image start index and image size may be specified for both horizontal and vertical directions.

• Trigger polarity (note that software trigging is disabled with negative polarity!)
• Shutter speed

• 2 seconds
• 1 seconds
• 1/15 second
• 1/30 second
• 1/60 second
• 1/100 second
• 1/120 second
• 1/250 second
• 1/500 second
• 1/1000 second
• 1/2000 second
• 1/4000 second
• 1/10000 second
• 1/25000 second
• 1/50000 second
• 1/100000 second

• Shutter delay (0..4095 milliseconds, default 0)
• CDS (Correlated Double Sampler) gain (0..63, default 47)
• Camera gain (0..18, default 0)
• Gamma settings including binarisation threshold (using some internal lookup tables)

• Off (default)
• 0.45
• 2.2
• Inverse
• Binarisation with threshold settings (0..1023)

Please see API documentation for more parameter value details.
