The component is to create a 3D Image from multiple 3D points source. Typical producers is Locate3D.

The STC-0021-ImageFromPoints3D component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

Setup

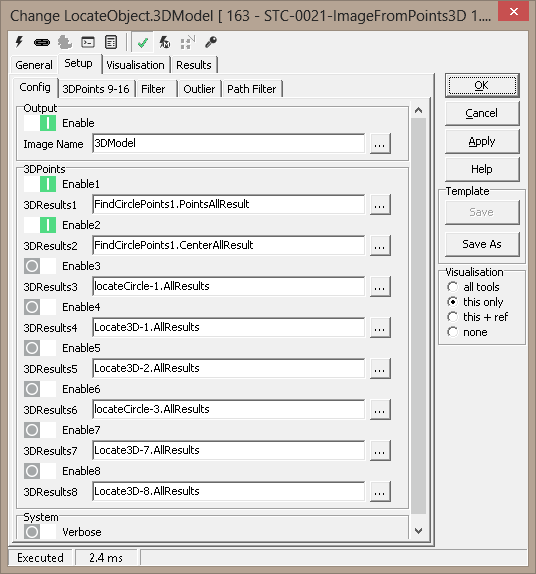

Configuration

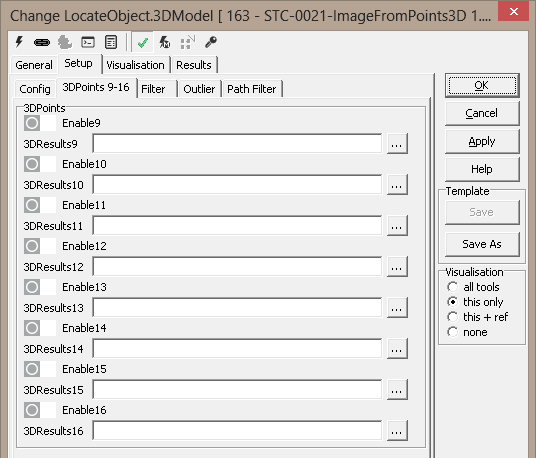

3DPoints 9-16

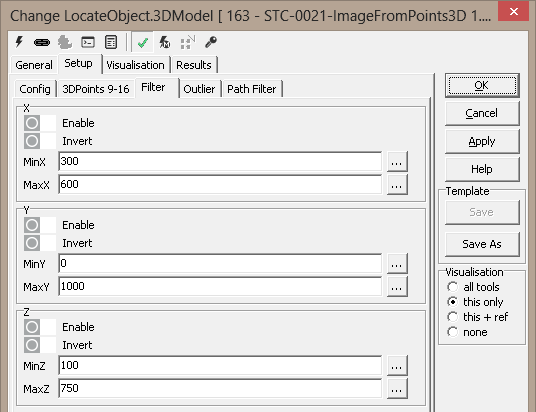

Filter

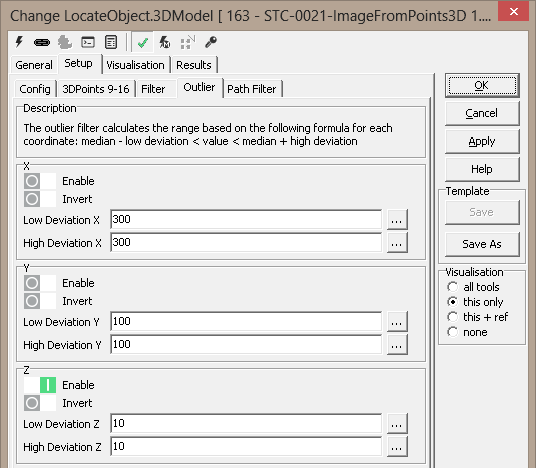

Outlier

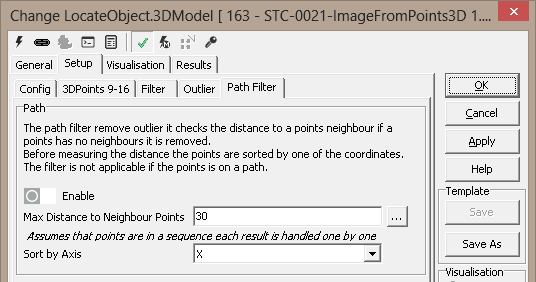

Path Filter

Inputs to the Tool:
Inputs:	1. Config   - Output     - Image Name   - 3DPoints 2. Filter   - X,Y,Z     - Enable     - Invert     - Min, Max 3. Outlier   - X,Y,Z     - Enable     - Invert     - Low Deviation, High Deviation 4. Path Filter   - Max Distance to Neighbour Points   - Sort by Axis
Uses Reference:	Yes
Uses Image:	Uses image to draw upon

Results

Outputs from the Tool:
Outputs:	1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status 2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error. 3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations:	None
Reference outputs:	None

Templates:
Supports Templates:	No

Profiles:
1:	SDP-2012-0048-Scorpion3DSmartCam-LocateGear
