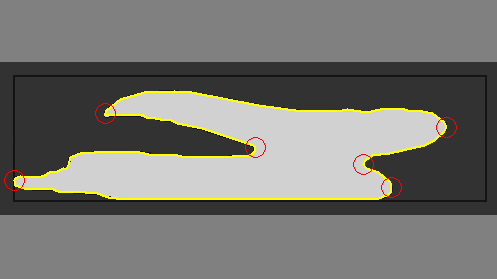

The PolygonExtrema STC is designe to locate extremal points along an axis
on a polygon.
The STC-0025 PolygonExtrema component is produced by Tordivel AS.
All rights reserved copyright 2011-2013.
General
Setup
Configuration
|
Inputs to the Tool: |
| Inputs: |

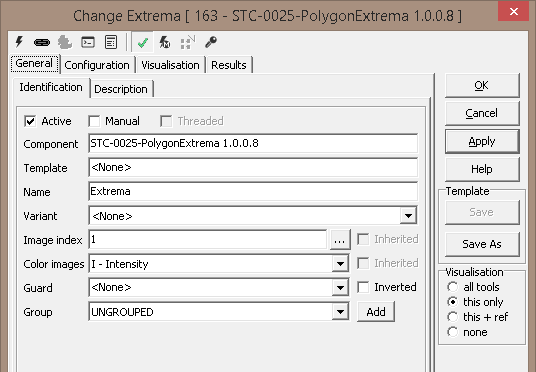

1. General
- Identification
- Active
- Manual
- Threaded
- Component
- Template
- Name
- Variant
- Image index
- Color images
- Guard
- Group
- Description

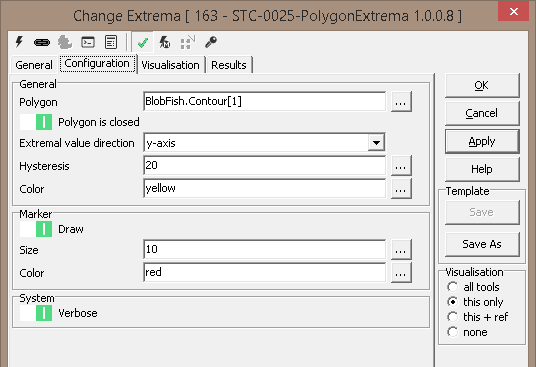

2. Configuration
- Polygon
- Polygon is closed
- Extremal value direction
- Hysteresis
- Color
- Marker
- Draw
- Size
- Color
- System
- Verbose
|
| Uses Reference: |
Yes |
| Uses Image: |
Uses image to draw upon |
| |
|

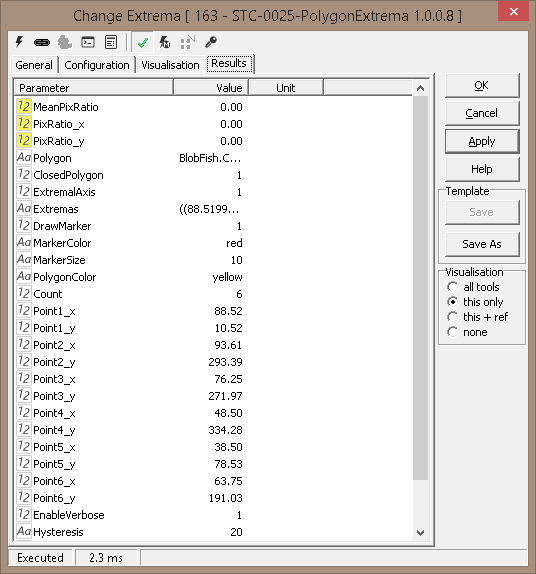

Results
|
Outputs from the Tool: |
| Outputs: |
|
1 |
StatusText: |
Text |
This is a
standard
output from
all Scorpion
tools and
describes
the
processing
status |
|
2 |
Status: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
error/success
of the tool
processing.
1 indicates
success and
0 indicates
error. |
|
3 |
AnalyzeTime: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
the time
taken by the
last
processing
operation of
this tool |
|
| Visualizations: |
None |
| Reference outputs: |
None |
| |
|
|
Templates: |
| Supports Templates: |
No |
| |
|
|
Profiles: |
| 1: |
STP-2012-0016 PolygonExtrema |
|
