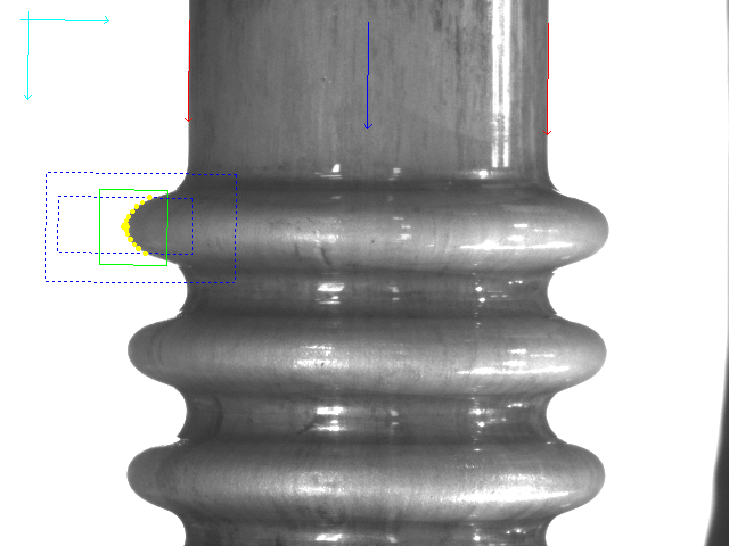

The component is used to calculate the extremes of a polygon. This
can be used to estimate the extreme point of a contour.
The STC-0028-PointExtrema component is produced by Tordivel AS.
All rights reserved copyright 2011-2013
Setup

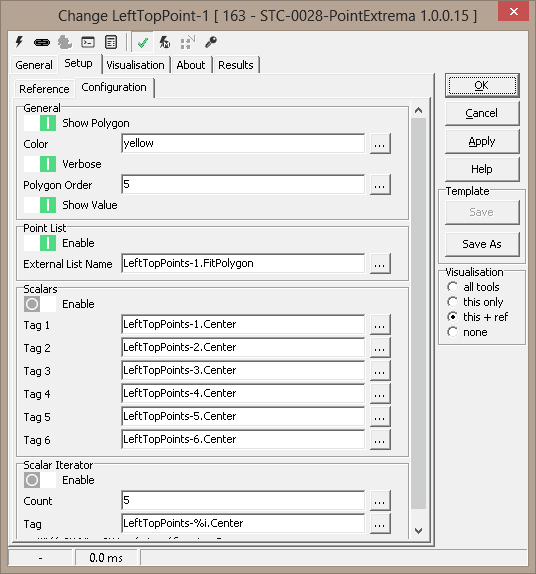

Configuration
|
Inputs to the Tool: |
| Inputs: |
1. Reference
2. Configuration
- Show Polygon
- Color
- Verbose
- Polygon Order
- Show Value
- Point List
- External List Name
- Scalars
- Scalar Iterator
- Count
- Tag
|
| Uses Reference: |
Yes |
| Uses Image: |
Uses image to draw upon |
| |
|

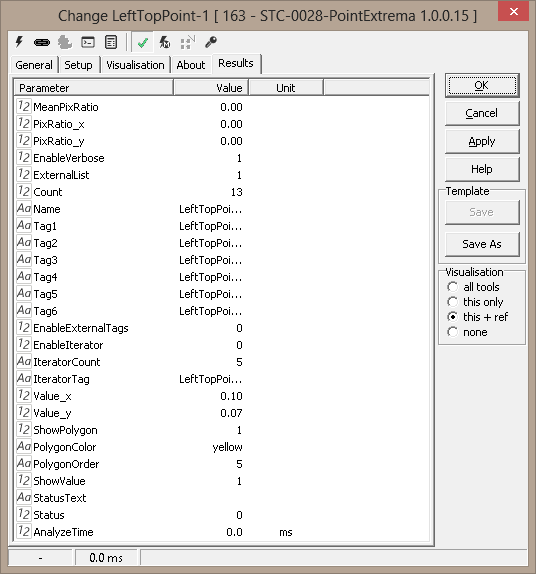

Results
|
Outputs from the Tool: |
| Outputs: |
|
1 |
StatusText: |
Text |
This is a
standard
output from
all Scorpion
tools and
describes
the
processing
status |
|
2 |
Status: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
error/success
of the tool
processing.
1 indicates
success and
0 indicates
error. |
|
3 |
AnalyzeTime: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
the time
taken by the
last
processing
operation of
this tool |
|
| Visualizations: |
None |
| Reference outputs: |
None |
| |
|
|
Templates: |
| Supports Templates: |
No |
| |
|
|
Profiles: |
| 1: |
STP-2012-0017-Locate-SubPixel-Extrema |
|
