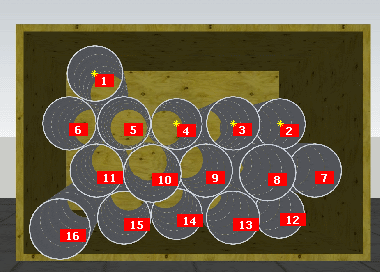

The component is used to sort 3D points in row and columns based on x and y coordinates.

The STC-0036-SortLocate3D component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

Setup

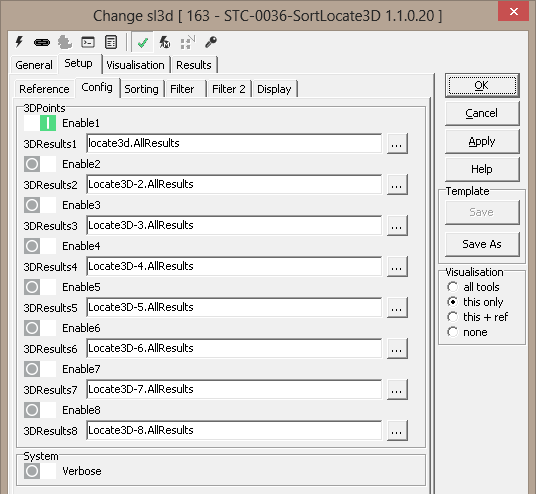

Configuration



Sorting



Filter

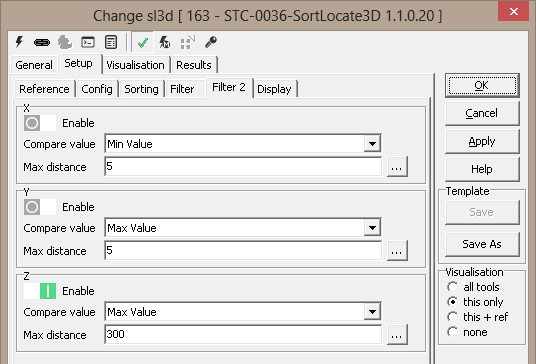

Filter2

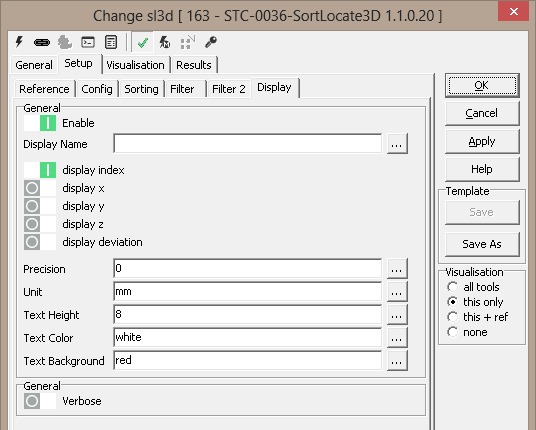

Display

Inputs to the Tool:
Inputs:	1. 3DPoints   - 3DResults 1-8 2. Sorting   - Sort by   - Grid X   - Increasing X   - Grid Y   - Increasing Y 4. Filter   - X,Y,Z     - Enable, Invert     - Min, Max     - Compare Value     - Max Distance 5. Display   - Display Name   - Display Index   - Display x,y,z   - Display Deviation   - Precision   - Unit   - Text Height   - Text Color   - Text Background 6. Verbose
Uses Reference:	Yes
Uses Image:	Uses image to draw upon

Results

Outputs from the Tool:
Outputs:	1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status 2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error. 3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations:	None
Reference outputs:	None

Templates:
Supports Templates:	No

Profiles:
1:	SDP-2012-0019-3DPipePicking
