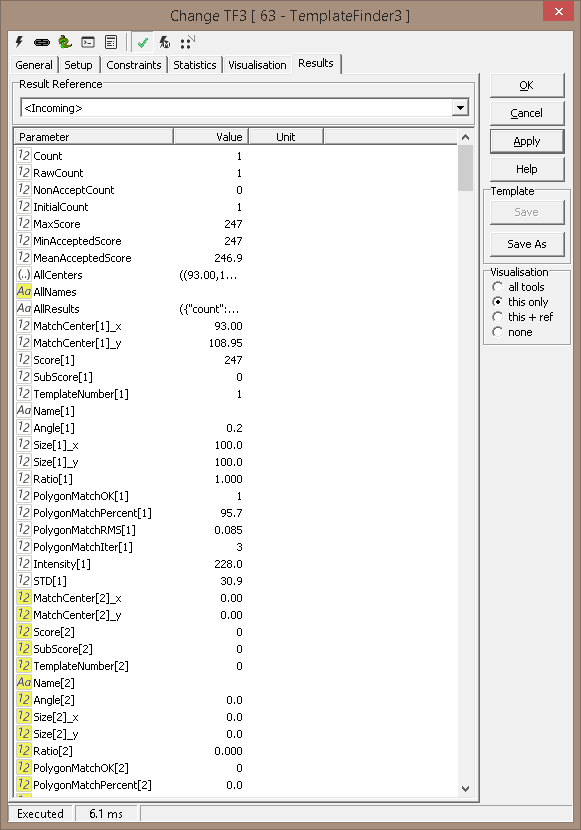

Results

Number of matches

After filtering

No of matches raw

Before filtering

No of matches below threshold

But above the raw threshold

Number of initial matches

From the initial, decimated match. If this number is too high, the decimation factor may be too high, impacting the processing time.

Best score

Best result

Lowest accepted score



Mean accepted score

All centers

Python compatible string

All names Separated by name separator

Match center[n] x,y

Is used as reference

Score[n]   Score

Subimage score[n]

Subscore

Template number[n]

Template number
Template name[n] Template name, if any
Angle[n] The angle of the template
Size[n] x,y Match size
Polygon match OK[n] 1 for OK
Polygon match percent[n] 0-100
Polygon match RMS[n] 0-...

Intensity [n]

Image intensity within template

Standard deviation [n]

Image intensity variation within template
