Result Panels

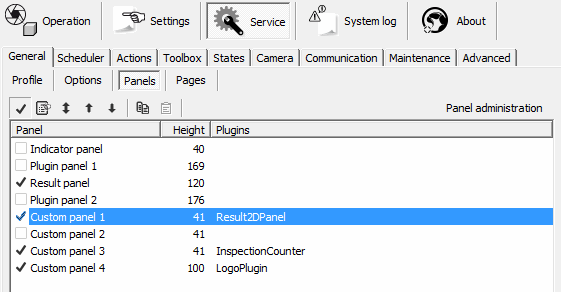

The Result Panels settings are a list of optional panels. They are visible in the left pane of the application. The following operations are available:

• Show / Hide - toggle visibility of panel
• Height - set  panel height
• Configure - activate the Plugin Administrator
• Up / Down - sorts the list

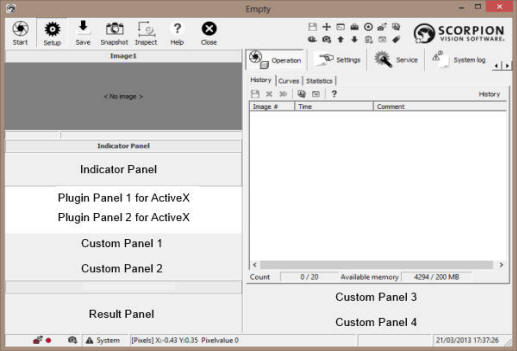

By default the following panels are active:

• Indicator panel - if selected, the indicator panel is shown at the lower left side of the screen. The panel indicates which error that has occurred if a unit is rejected.
• Result panel - if selected, the result panel is shown at the lower left side of the screen. Here you see the result of a classification.

• Plugin panel 1 and 2 are defined under Advanced - Central - Plugins.
  • These are used for ActiveX plugin purposes

Note: When an ActiveX control is present, the control is visible when Scorpion Starts.

• CustomPanel 1,2,3 and 4
  • Populated by  .Net Controls and python scripting from Central
    • get window handle with GetCustomPage access function

Scorpion Plugins

With Scorpion Vision Software 9.0 the Scorpion Plugins can be embedded into Custom Page or Custom Panels.

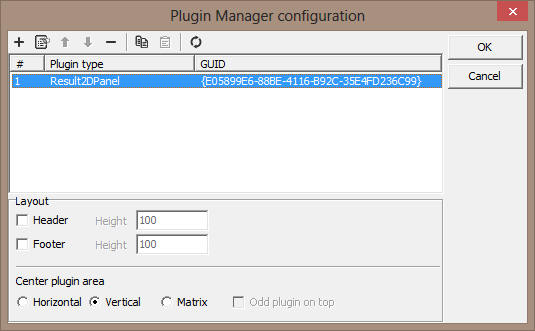

When configuring the Scorpion Plugin press Configure to activate the

The following commands are available in the toolbar and on the right click menu:

• Add - add Scorpion Plugins
  • The plugins are located in the Plugins profile directory
  • Each plugin is located in a folder with the plugin name
  • Open the folder and select the <plugin name>.py file
• Delete - removes a plugin
• Up and down arrows manage the sequence of the plugins
• Property - activate the plugins own property dialog

Read more about Scorpion Plugins

 Page Administrator

The Page Administrator manages user defined page tabs in the right pane of the application. When creating a new page or editing a defined page the following dialog is shown:

• Name - the name of the page - displayed on the tab
• Type - the type of page
  • The following types are  supported:
    • Web Browser
    • Data Input
    • Results
    • Custom Page
• Host - where the page is located in the application
  • Operation
  • Settings
  • Service
  • Service - Advanced
• Page Index - where in the tab sequence the page is located

CustomPages are populated by .Net Controls, get window handle with GetCustomPage method or Scorpion Plugins.

• New - creates a new page
• Edit - edits the page setup
• Configure - activates the property page of the page
  • Not all page type has a property page
• Delete - deletes the selected page

Web Browser Property Page
