The component is used provide easy access to powerful image filters.
The following operations are supported:
- c - Canny
- d - Dilate
- e - Erode
- l - Laplace
- t - AdaptiveTreshold
- b - Blur
- m - MedianBlur
- i - Invert 8 bit image
- o - add image border
The STC-0011-ImageFilter component is produced by Tordivel AS.
All rights reserved copyright 2011-2013
Reference
Config 1
Config 2
Config 3
|
Inputs to the Tool: |
| Inputs: |

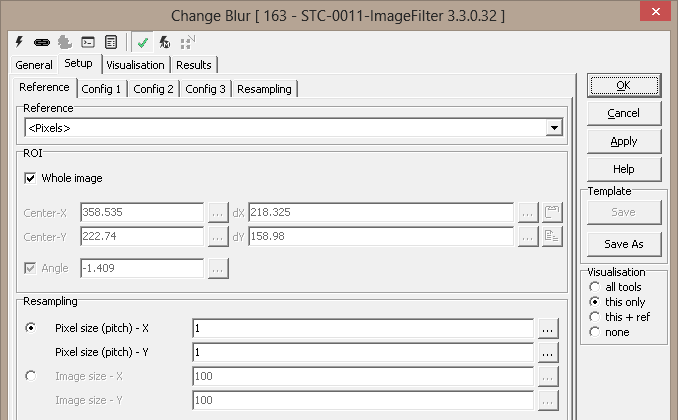

1. Reference
- ROI
- Resampling

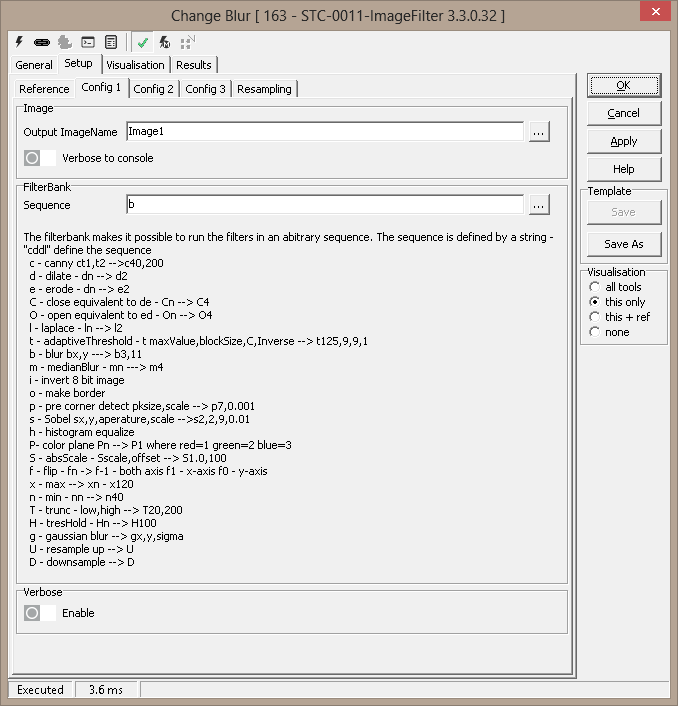

2. Config1
- Output Image Name (Output Image - the resulting image is displayed)
- Verbose to console
- FilterBank - activates a mode where the filters can be run in an
arbitrary sequence
- Sequence
- Verbose - output debug messages to console

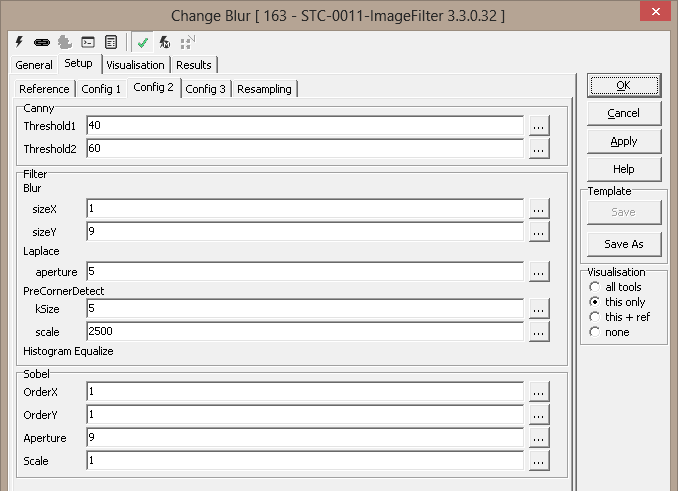

3. Config2
- Canny
- Treshold1
- Treshold2
- Filter
- Blur
- Laplace
- PreCornerDetect
- Histogram Equalize
- Sobel
- OrderX
- OrderY
- Aperture
- Scale

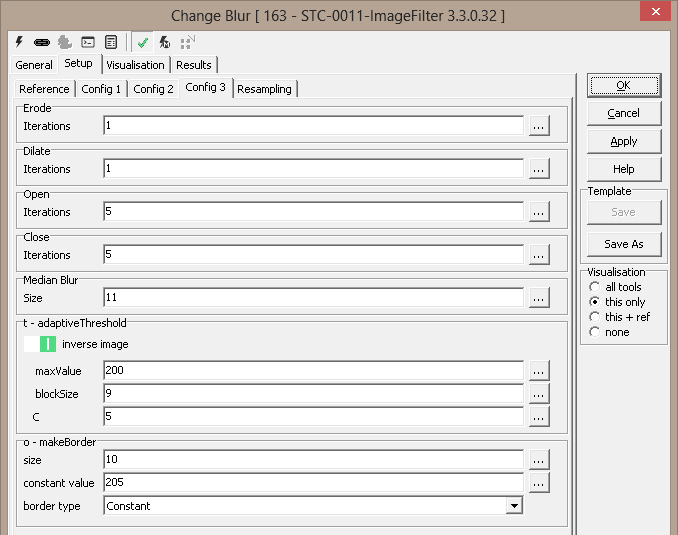

4. Config3
- Erode
- Iterations
- Dilate
- Iterations
- Open
- Iterations
- Close
- Iterations
- Median Blur
- t - adaptiveThreshold
- Inverse Image
- maxValue
- blockSize
- C
- o - makeBorder
- Size
- Constant Value
- Border Type
5.Resampling
|
| Uses Reference: |
Yes |
| Uses Image: |
Yes |
| |
|
Results
|
Outputs from the Tool: |
| Outputs: |
|
1 |
StatusText: |
Text |
This is a
standard
output from
all Scorpion
tools and
describes
the
processing
status |
|
2 |
Status: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
error/success
of the tool
processing.
1 indicates
success and
0 indicates
error. |
|
3 |
AnalyzeTime: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
the time
taken by the
last
processing
operation of
this tool |
|
| Visualizations: |
None |
| Reference outputs: |
None |
| |
|
|
Templates: |
| Supports Templates: |
No |
| |
|
|
Profiles: |
| 1: |
STP-2012-0002-OpenCVFilters |
| 2: |
STP-2012-0026-ConvexHull |
|
