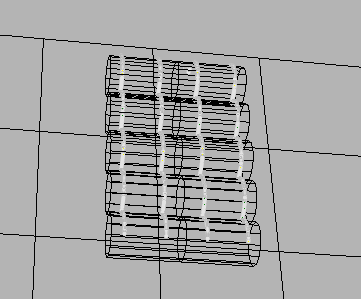

The STC-0061-FindCylinder3D component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

Setup

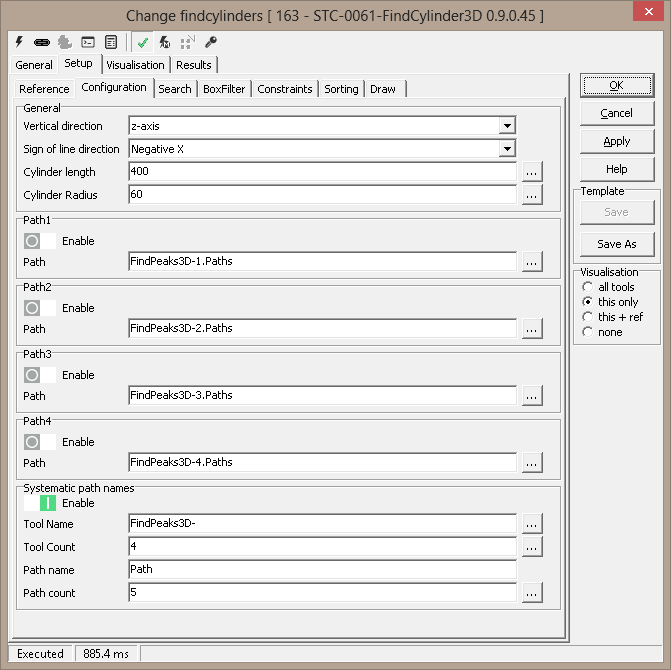

Configuration

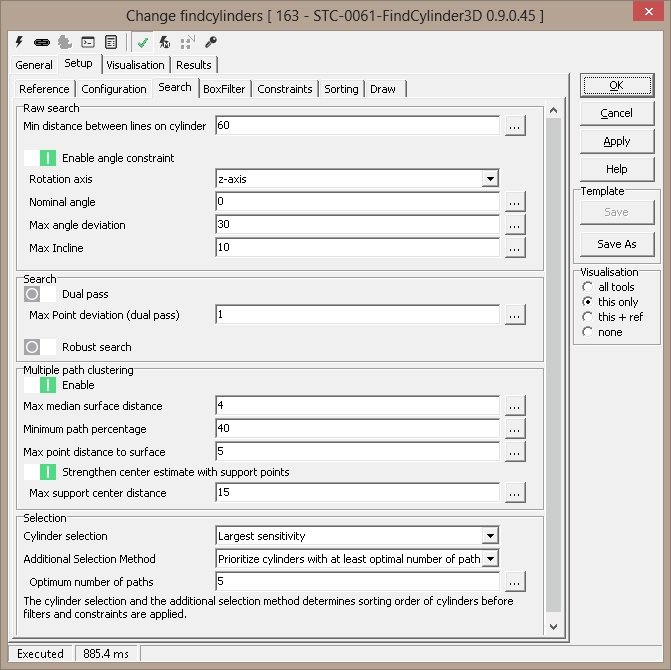

Search

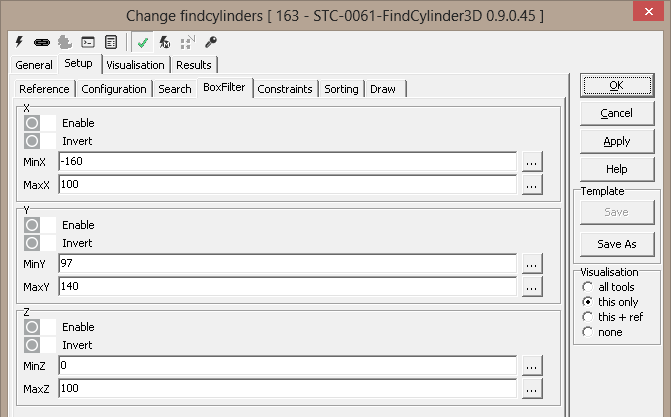

BoxFilter



Constraints

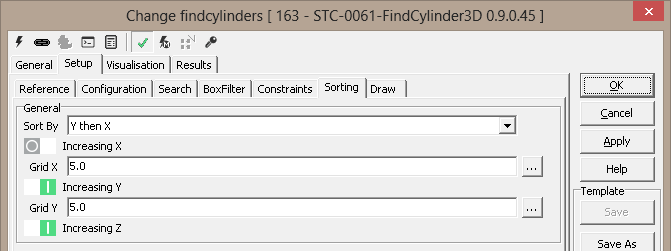

Sorting

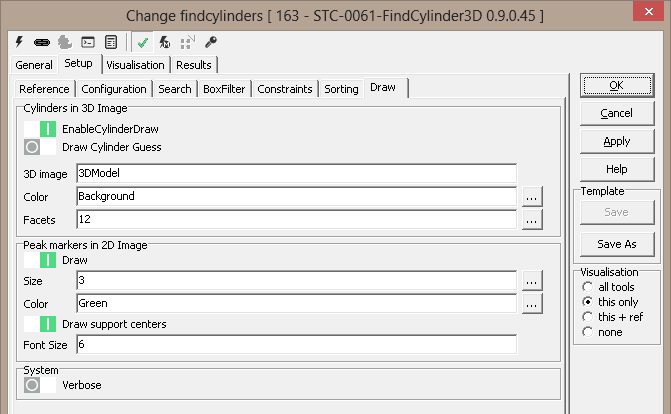

Draw

Inputs to the Tool:
Inputs:	1. Vertical Direction 2. Sign of line direction 3. Cylinder Length 4. Cylinder Radius 5. Paths 6. Sytematic Path Names   - Tool Name   - Tool Count   - Path Name   - Path Count 7. Raw Search   - Min distance between lines on cylinder   - Angle Constraint   - Rotation Axis   - Nominal Angle   - Max Angle Deviation   - Max Incline 8. Search   - Dual Pass   - Max Point Deviation (dual pass)   - Robust Search 9. Multiple Path Clustering   - Max Median Surface Distance   - Minimum Path Percentage   - Max Point Distance to Surface   - Strengthen center estimate with support points   - Max support center distance 10. Selection   - Sylinder Selection   - Additional Selection Method   - Optimum Number of Paths 11. BoxFilter 12. Constraints   - X,Y,Z     - Compare Value     - Max Distance   - Cylinder     - Minimum Point Count     - Maximum rms     - Minimum Surface Spread (perpendicular to cylinder axis) 13. Sorting 14. Draw
Uses Reference:	Yes
Uses Image:	Uses image to draw upon

Results

Outputs from the Tool:
Outputs:	1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status 2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error. 3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations:	None
Reference outputs:	None

Templates:
Supports Templates:	No

Profiles:
1:	SDP-2012-0018 Pipe 3D Bin Picking
