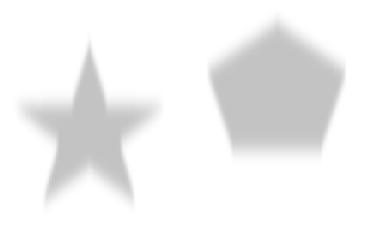

The component is to match the shape of two polygons.

The STC-0044-MatchShapes2D component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

Setup

Inputs to the Tool:
Inputs:	1. Reference 2. Config   - 2D Points     - Shape 1     - Shape 2   - Draw     - Draw Marker     - Color     - Size   - Verbose
Uses Reference:	Yes
Uses Image:	Uses image to draw upon

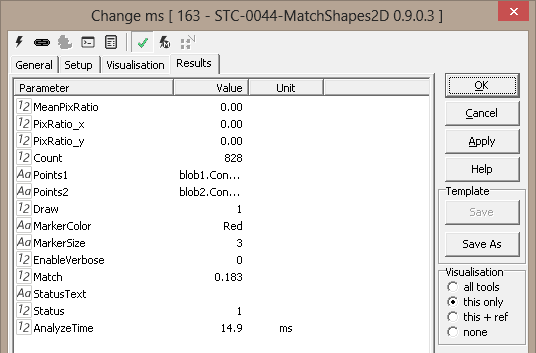

Results

Outputs from the Tool:
Outputs:	1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status 2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error. 3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations:	None
Reference outputs:	None

Templates:
Supports Templates:	No

Profiles:
1:	STP-2012-0026-ConvexHull
