STC-0016-ScalarList

The component is used to to calculate the statistical properties of a list of scalars.

The list can be a tuple or created from a set of scalar tool results. The component is easy to use and can replace some simple custom python scripting.

The STC-0016-ScalarList component is produced by Tordivel AS.

All rights reserved copyright 2011-2012

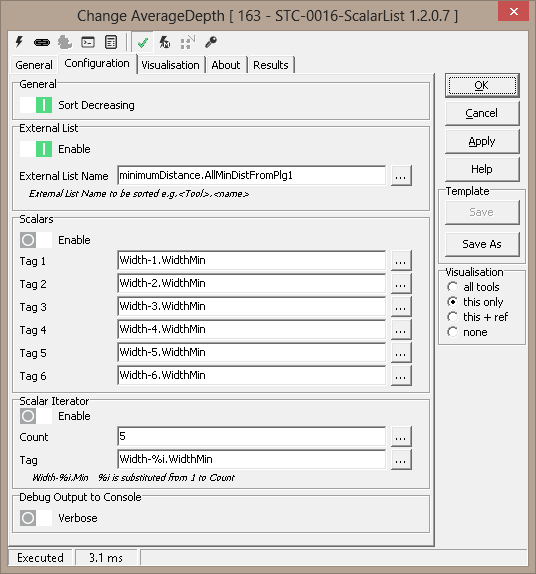

Setup


Inputs to the Tool:
Inputs: 1. List Name
2. Decreasing | Increasing
3. Verbose - debug print to console
Uses Reference: No
Uses Image: No

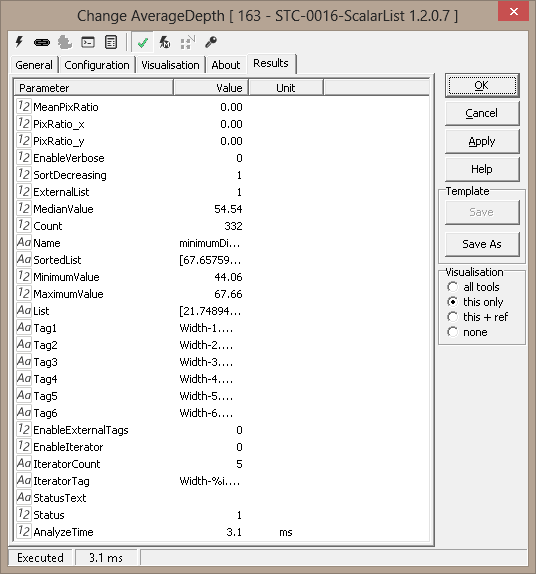

Results



Outputs from the Tool:
Outputs:
1 SortedList: Text
Python Result
The resulting sorted list
2 MedianValue Numeric
3 MinimumValue Numeric
4 MaximumValue Numeric
5 Count Numeric Number of elements
6 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status
7 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error.
8 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations: None
Reference outputs: None


Templates:
Supports Templates: No

Profiles:
1: STP-2013-0006 BlobDistance




Scorpion Vision Version XV  : Build 764 - Date: 20200529
