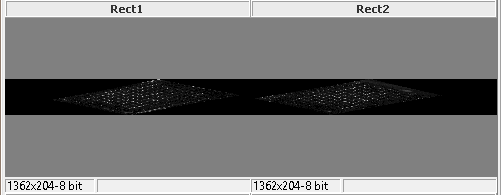

The tool produces a stereo rectified pair of images that can be used to create a disparity map or 3D image from a two 3D stereo calibrated cameras. The tool works in conjuction with STC-0083-DisparityMap3D.

The STC-0084 StereoRectify3D component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

Setup

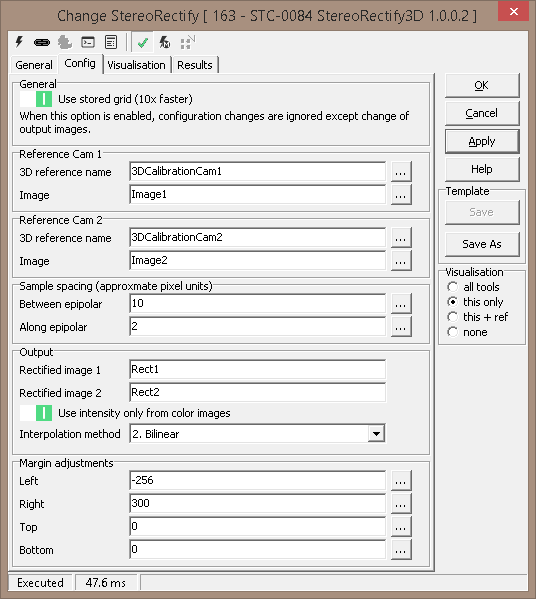

Configuration

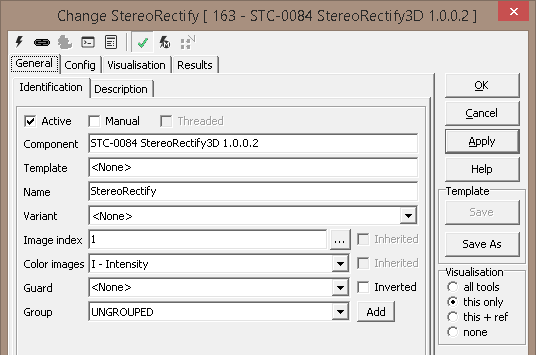

General

Inputs to the Tool:
Inputs:	1. General   - Identification     - Active     - Manual     - Threaded     - Component     - Template     - Name     - Variant     - Image index     - Color images     - Guard     - Group   - Description 2. Config   - General     - Use stored grid (10x faster)       - When this option is enabled, configuration changes are ignored except changes of output images.   - Reference Cam 1 & 2     - 3D reference name     - Image   - Sample spacing (approximate pixel units)     - Between and along epipolar   - Output     - Rectified image 1 & 2     - Use intensity only from color images     - Interpolation method   - Margin adjustments     - Left, right, top, bottom
Uses Reference:	Yes
Uses Image:	Uses image to draw upon

Results

Outputs from the Tool:
Outputs:	1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status 2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error. 3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations:	None
Reference outputs:	None

Templates:
Supports Templates:	No

Profiles:
1:	STP-0072-DisparityMap
