STC-0018-DisplayResult3D

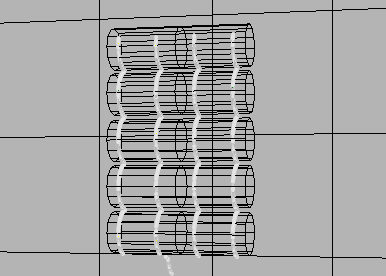

The component is used to display a 3d result.

The STC-0018-DisplayResult3D component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

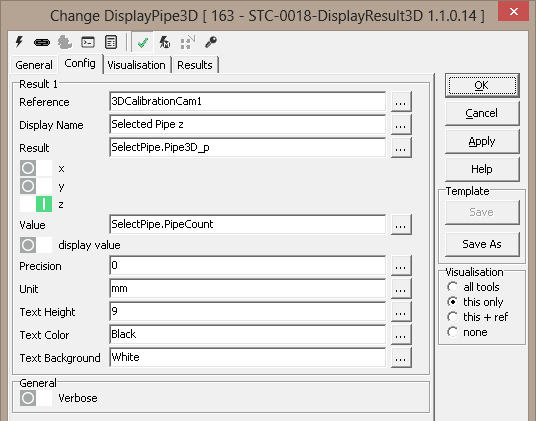

Setup





Inputs to the Tool:
Inputs: 1. Reference
2. Display Name
3. Result
4. x,y,z
5. Value
6. Display Value
7. Precision
8. Unit
9. Text Height
10. Text Color
11. Text Background
12. Verbose
Uses Reference: Yes
Uses Image: Uses image to draw upon

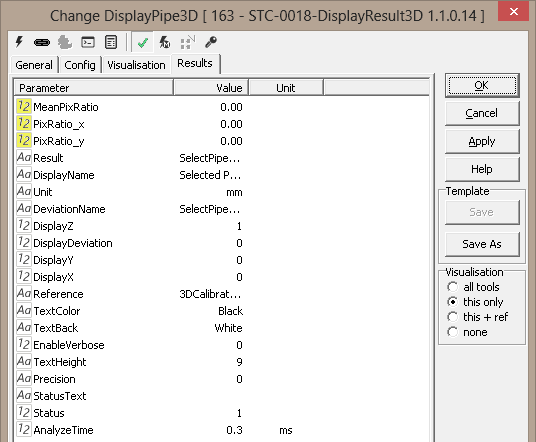

Results




Outputs from the Tool:
Outputs:
1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status
2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error.
3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations: None
Reference outputs: None


Templates:
Supports Templates: No

Profiles:
1: SDP-2012-0018 Pipe 3D Bin Picking



Scorpion Vision Version XV  : Build 764 - Date: 20200529
