The component is used to display a result label on an image.
The
STC-0060-FindPeaks3D component is produced by Tordivel AS.
All rights reserved copyright 2011-2013
Setup

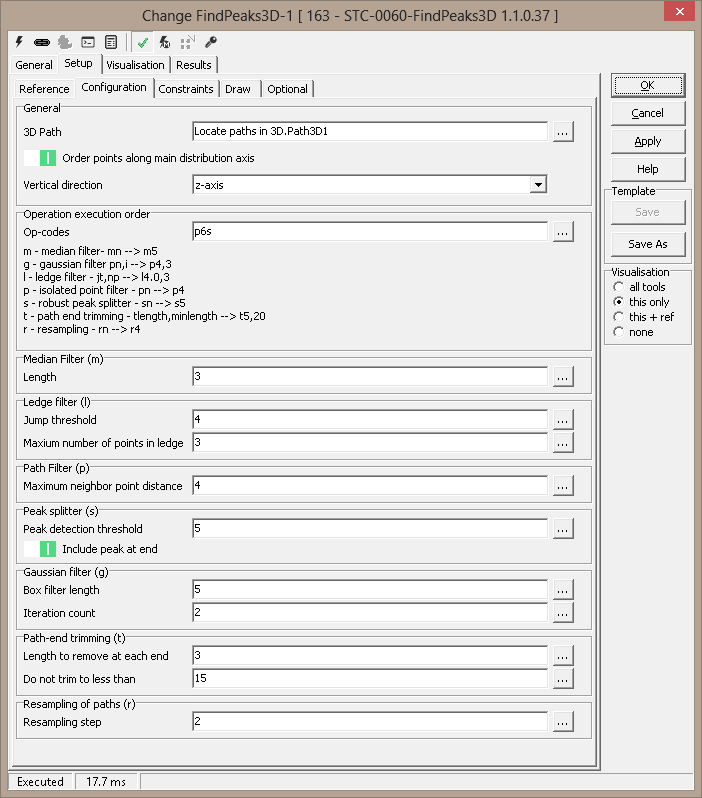

Configuration

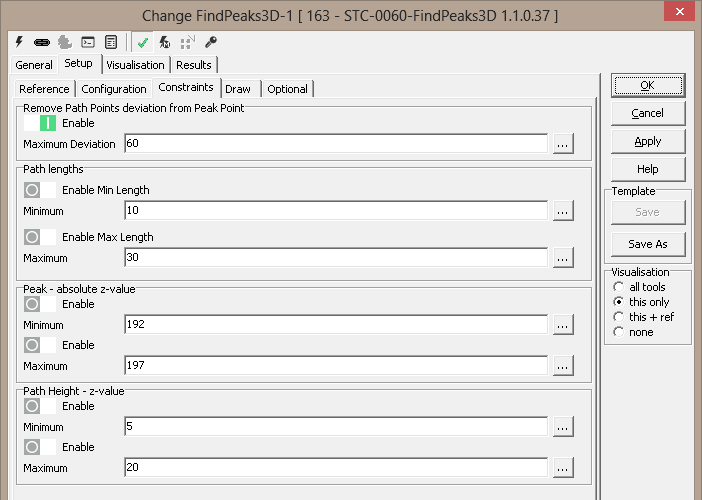

Constraints

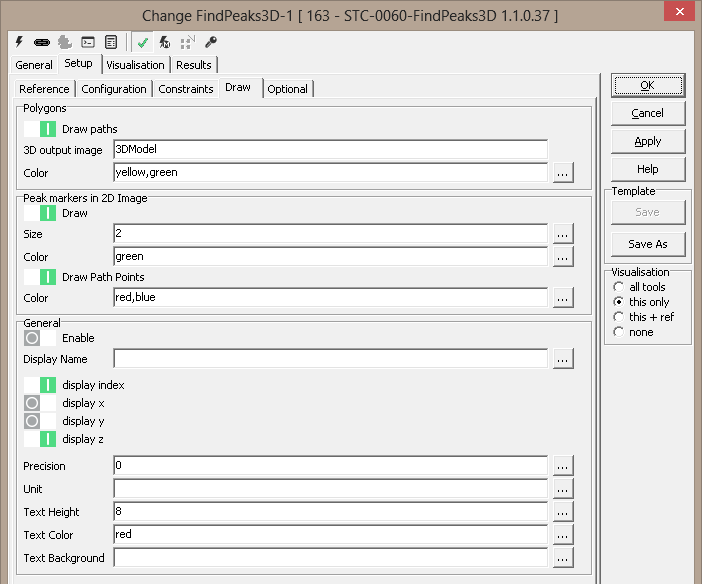

Draw
Optional
|
Inputs to the Tool: |
| Inputs: |
1. 3D Path
2. Order points along main distribution axis
3. Vertical Direction
4. Operation Execution Order
- Op-codes
5. Median Filter (m)
- Length
6. Ledge Filter (l)
- Jump Treshold
- Maximum number of points in ledge
7. Path Filter (p)
- Maximum neighbor point distance
8. Peak Splitter (s)
- Peak detection treshold
- Include peak at end
9. Gaussian Filter (g)
- Box filter length
- Iteration count
10. Path-end Trimming (t)
- Length to remove at each end
- Do not trim to less than
11. Resampling of Paths (r)
- Resampling step
12. Remove Path Points deviation from Peak
Point
- Maximum deviation
13. Path Lengths
14. Peak - absolute z-value
15. Path Height - z-value
16. Draw
17. Verbose
18. Create PathN |
| Uses Reference: |
Yes |
| Uses Image: |
Uses image to draw upon |
| |
|

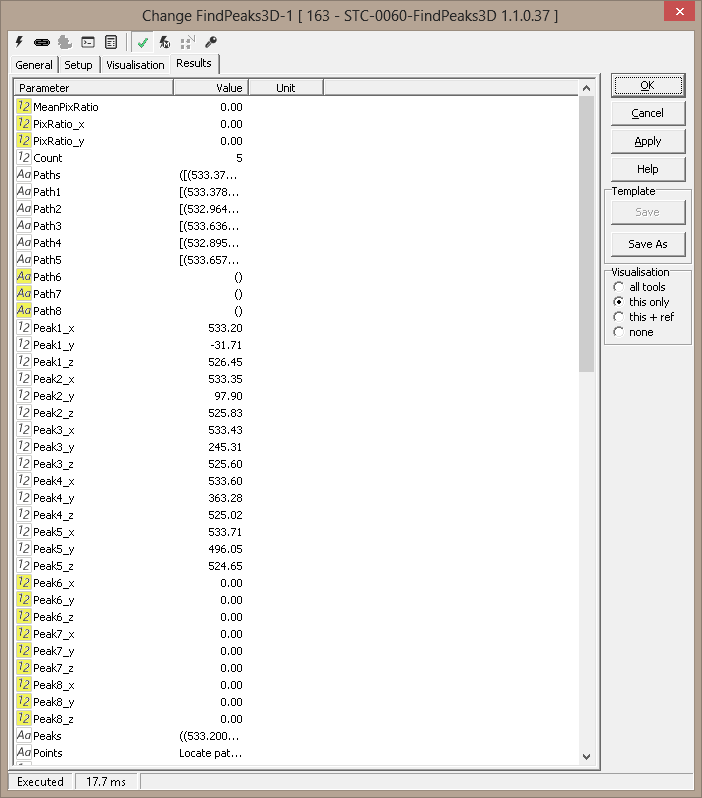

Results
|
Outputs from the Tool: |
| Outputs: |
|
1 |
StatusText: |
Text |
This is a
standard
output from
all Scorpion
tools and
describes
the
processing
status |
|
2 |
Status: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
error/success
of the tool
processing.
1 indicates
success and
0 indicates
error. |
|
3 |
AnalyzeTime: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
the time
taken by the
last
processing
operation of
this tool |
|
| Visualizations: |
None |
| Reference outputs: |
None |
| |
|
|
Templates: |
| Supports Templates: |
No |
| |
|
|
Profiles: |
| 1: |
STP-2012-0018 Pipe 3D Bin Picking |
|
