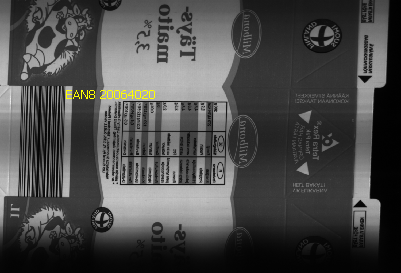

The component is used to display a result label on an image.

The STC-0070-ZBar component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

Setup

Reference



Barcode Setup

Inputs to the Tool:
Inputs:	1. Reference   - Reference   - ROI   - Resampling     - Pixel Size     - Image Size 2. Barcode Setup   - Verbose   - Fail String   - Code   - Font Size 3. Resampling
Uses Reference:	Yes
Uses Image:	Uses image to draw upon

Results

Outputs from the Tool:
Outputs:	1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status 2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error. 3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations:	None
Reference outputs:	None

Templates:
Supports Templates:	No

Profiles:
1:	SVA-0001-Barcode
