The component is used to locate polygon corners.

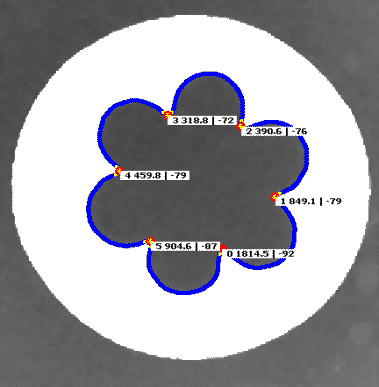

The image illustrates the s12 operand used to simply the "rose" polygon.

The STC-0032-PolygonCorners component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

Setup

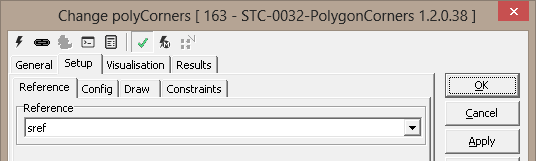

Reference

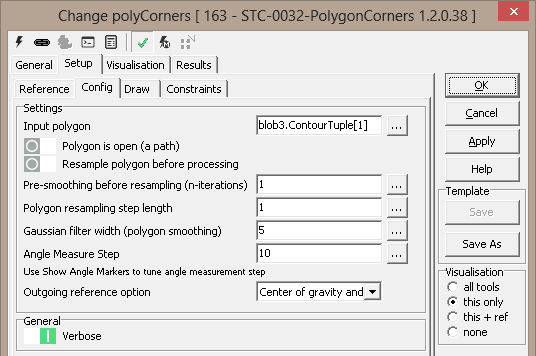

Configuration

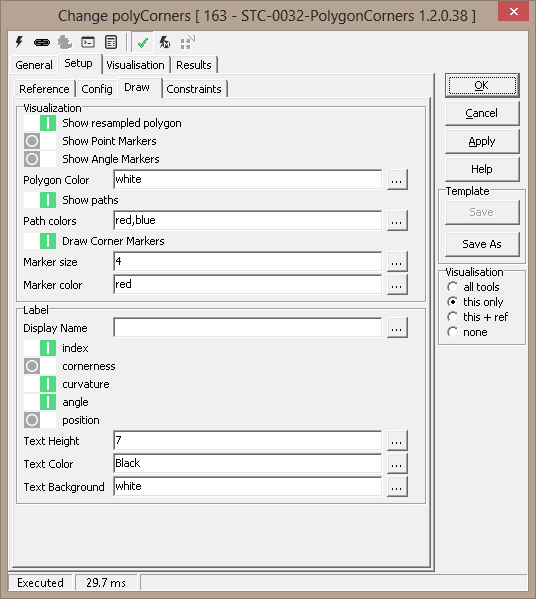

Draw

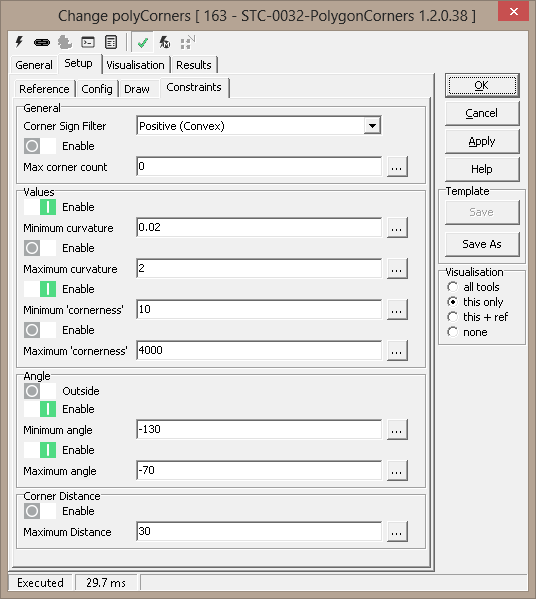

Constraints

Inputs to the Tool:
Inputs:	1. Reference 2. Config   - Input Polygon   - Polygon is open (a path)   - Resample polygon before resampling (n-iterations)   - Polygon resampling step length   - Gaussian filter width (polygon smoothing)   - Angle Measure Step - Use Show Angle Markers to tune angle measurement step   - Outgoing reference option   - Verbose 3. Draw   - Show Resampled Polygon   - Show Point Markers   - Show Angle Markers   - Polygon Color   - Show Paths   - Path Colors   - Draw Corner Markers   - Marker Size   - Marker Color   - Display Name   - Index   - Cornerness   - Curvature   - Angle   - Position   - Text height   - Text Color   - Text Background 4. Constraints   - Corner Sign Filter   - Max Corner Count   - Minimum Curvature   - Maximum Curvature   - Minimum 'Cornerness'   - Maximum 'Cornerness'   - Angle     - Minimum Angle     - Maximum Angle   - Corner Distance     - Maximum Distance
Uses Reference:	Yes
Uses Image:	Uses image to draw upon

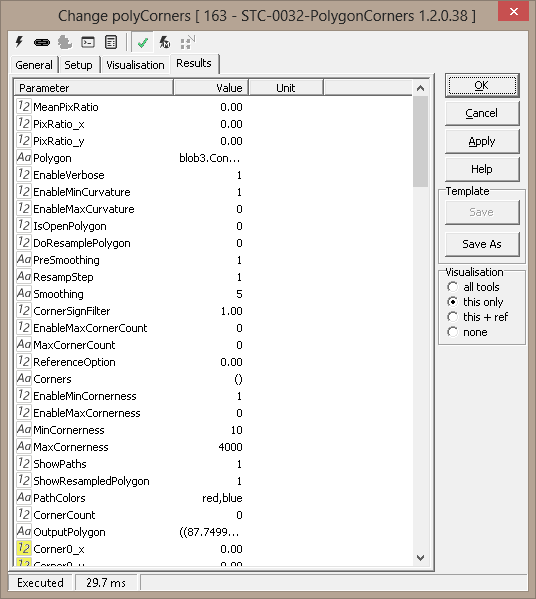

Results

Outputs from the Tool:
Outputs:	1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status 2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error. 3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations:	None
Reference outputs:	None

Templates:
Supports Templates:	No

Profiles:
1:	STP-2012-0026-ConvexHull
