STC-0042-BoundingRect2D

The component is used to calculate the bounding rect of a 2D polygon.

The STC-0042-BoundingRect2D component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

Setup

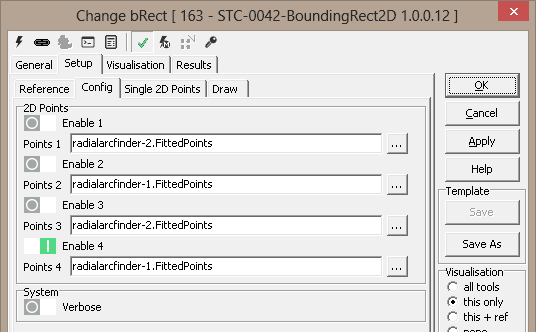

Config

The input is defines by adding multiple 2D points - tuples - and 2D points on the Single 2D Points tab.
The active points and tuples defines the 2D polygon that is used for BoundingRect calculation.



S
ingle 2D Points

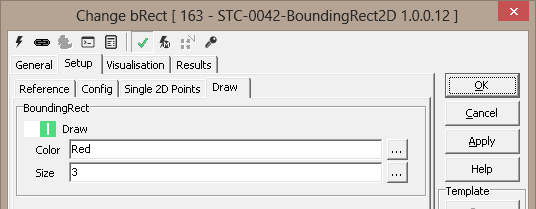

Draw





Inputs to the Tool:
Inputs: 1. 2D Points
2. Verbose
3. Single 2D Points 1-8
4. Draw
  - Color, Size
Uses Reference: Yes
Uses Image: Uses image to draw upon

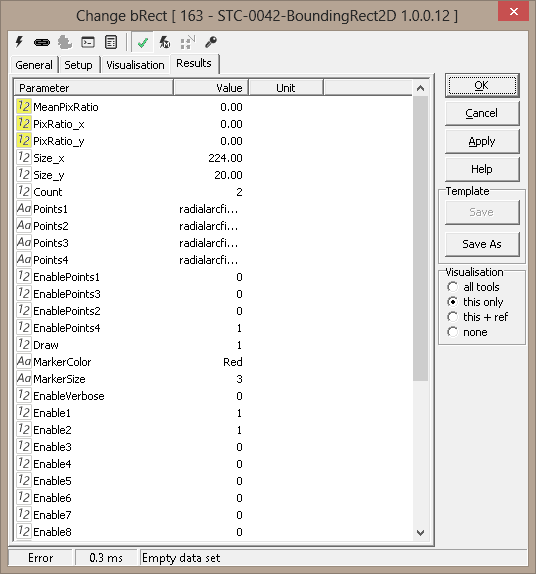

Results




Outputs from the Tool:
Outputs:
1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status
2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error.
3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations: None
Reference outputs: None


Templates:
Supports Templates: No

Profiles:
1: SDP-2012-0019-3DPipePicking
