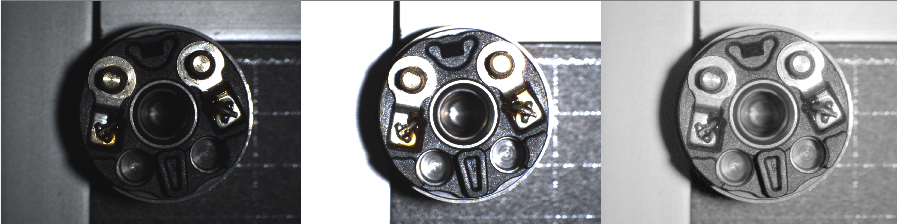

The MultiExpoMerger expands the dynamics of a 8-bit image by combining two images with different exposure and then combining the images with logarithmic compression. A clever and useful little STC.

The STC-0082 MultiExpoMerger component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

Setup

Configuration

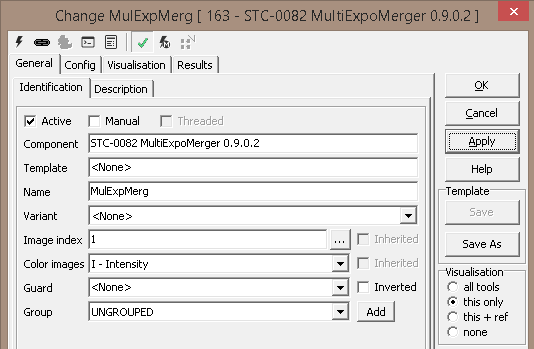

General

Inputs to the Tool:
Inputs:	1. General   - Identification     - Active     - Manual     - Threaded     - Component     - Template     - Name     - Variant     - Image index     - Color images     - Guard     - Group   - Description 2. Configuration   - Input images   - Exposure time   - General     - Output image name     - Saturation threshold     - Mapping mode     - Dynamic bottom level     - Dynamic top level
Uses Reference:	Yes
Uses Image:

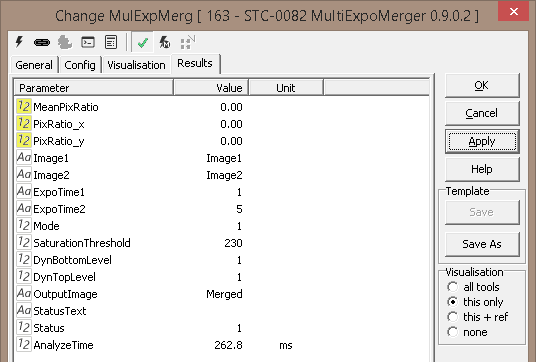

Results

Outputs from the Tool:
Outputs:	1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status 2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error. 3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations:	None
Reference outputs:	None

Templates:
Supports Templates:	No

Profiles:
1:	STP-0071-Merge multi-exposures
