STC-0026-PolygonSectorDivider

The component is divide a polygon into N sectors.

The STC-0026-PolygonSectorDivider component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

Setup

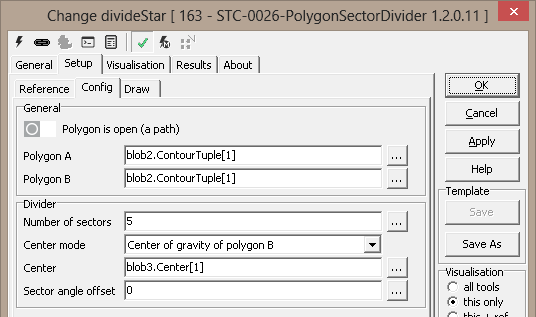

Configuration



Draw




Inputs to the Tool:
Inputs: 1. Reference
2. Config
  - Polygon is open (a path)
  - Polygon A
  - polygon B
  - Divider
    - Number of sectors
    - Center mode
    - Center
    - Sector angle offset
3. Draw
  - Show Polygon Chops
  - Chop colors
  - Sector Divide Lines
    - Color
    - Radius
4. Visualisation
  - Show polygon chops
  - Chops colors (alternating)
  - Show sectors
Uses Reference: Yes
Uses Image: Uses image to draw upon

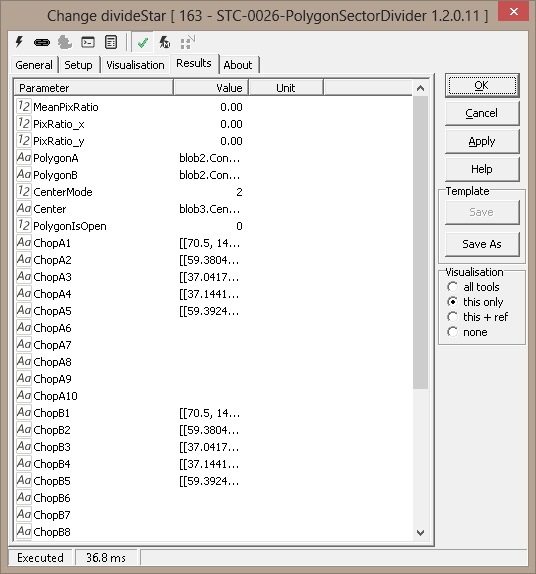

Results




Outputs from the Tool:
Outputs:
1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status
2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error.
3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations: None
Reference outputs: None


Templates:
Supports Templates: No

Profiles:
1: STP-2012-0026-ConvexHull
