The component is calculate the 3D position using a 3D calibration and an epipolarline.
The STC-0012-EpiPolarLine3D component is produced by Tordivel AS.
All rights reserved copyright 2011-2013
Setup

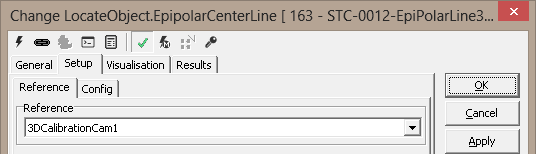

Reference

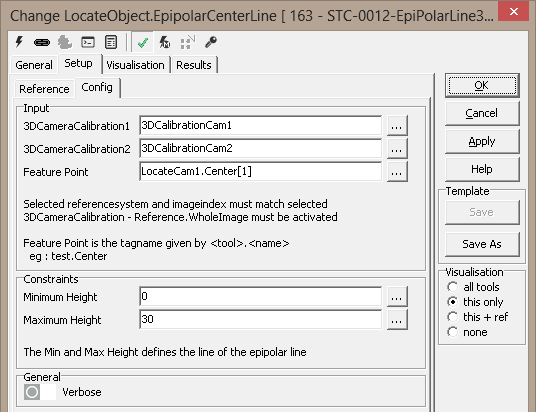

Configuration
|
Inputs to the Tool: |
| Inputs: |
1. Reference
2. Config
- 3DCameraCalibration1
- 3DCameraCalibration2
- Feature Point
- Constraints
- Minimum Height
- Maximum Height
- Verbose |
| Uses Reference: |
Yes |
| Uses Image: |
Uses image to draw upon |
| |
|

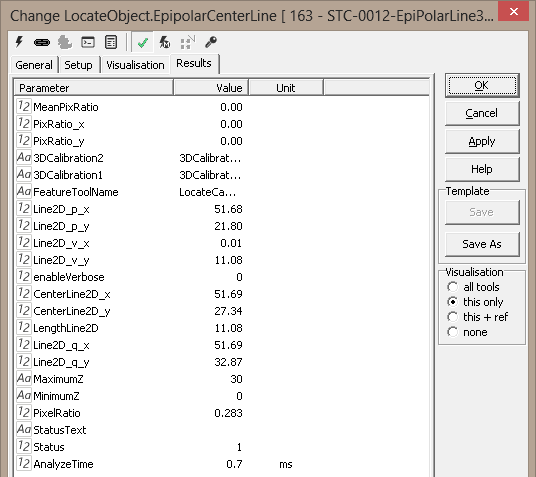

Results
|
Outputs from the Tool: |
| Outputs: |
|
1 |
StatusText: |
Text |
This is a
standard
output from
all Scorpion
tools and
describes
the
processing
status |
|
2 |
Status: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
error/success
of the tool
processing.
1 indicates
success and
0 indicates
error. |
|
3 |
AnalyzeTime: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
the time
taken by the
last
processing
operation of
this tool |
|
| Visualizations: |
None |
| Reference outputs: |
None |
| |
|
|
Templates: |
| Supports Templates: |
No |
| |
|
|
Profiles: |
| 1: |
SDP-2012-0048-Scorpion3DSmartCam-LocateGear |
|
