The
STC-0038-FitLine3D component is produced by Tordivel AS.
It is used to to fit a line from a set of 3D points.
STC-0038 FitLine3D locates a line based
on the Locate3D matching the output from
two 2D-lines.
All rights reserved copyright 2011-2013
Setup

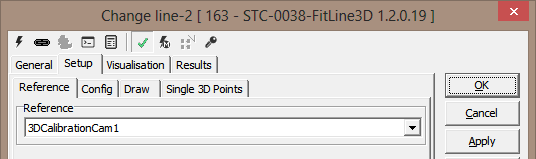

Reference

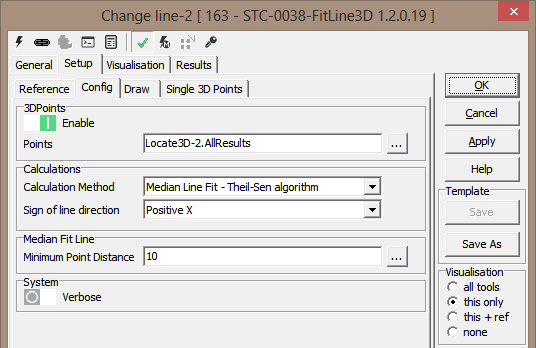

Config
Draw
Single 2D Points
|
Inputs to the Tool: |
| Inputs: |
1. Reference
2. 2D Points
3. Draw
- Draw Rect
- Draw Markers
- Color
- Size
4. Verbose |
| Uses Reference: |
Yes |
| Uses Image: |
Uses image to draw upon |
| |
|

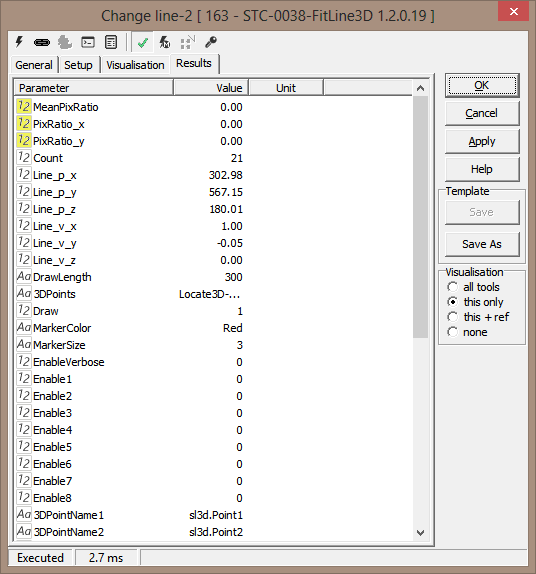

Results
|
Outputs from the Tool: |
| Outputs: |
|
1 |
StatusText: |
Text |
This is a
standard
output from
all Scorpion
tools and
describes
the
processing
status |
|
2 |
Status: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
error/success
of the tool
processing.
1 indicates
success and
0 indicates
error. |
|
3 |
AnalyzeTime: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
the time
taken by the
last
processing
operation of
this tool |
|
| Visualizations: |
None |
| Reference outputs: |
None |
| |
|
|
Templates: |
| Supports Templates: |
No |
| |
|
|
