The component is define the 3D coordinates of a reference object. The
results are used by multiple ExternalReference3D tools.
The STC-0062-RefObjCalibration3D component is produced by Tordivel AS.
All rights reserved copyright 2011-2013
Setup

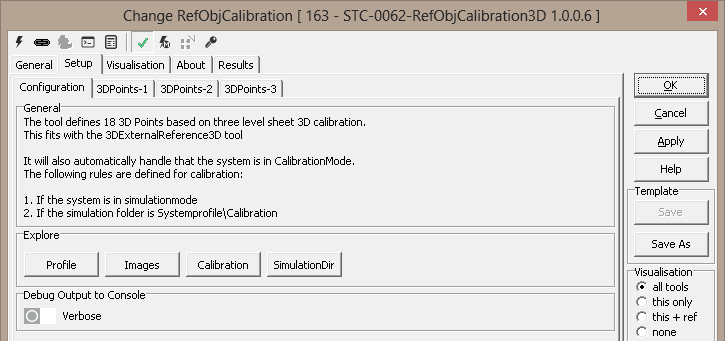

Configuration

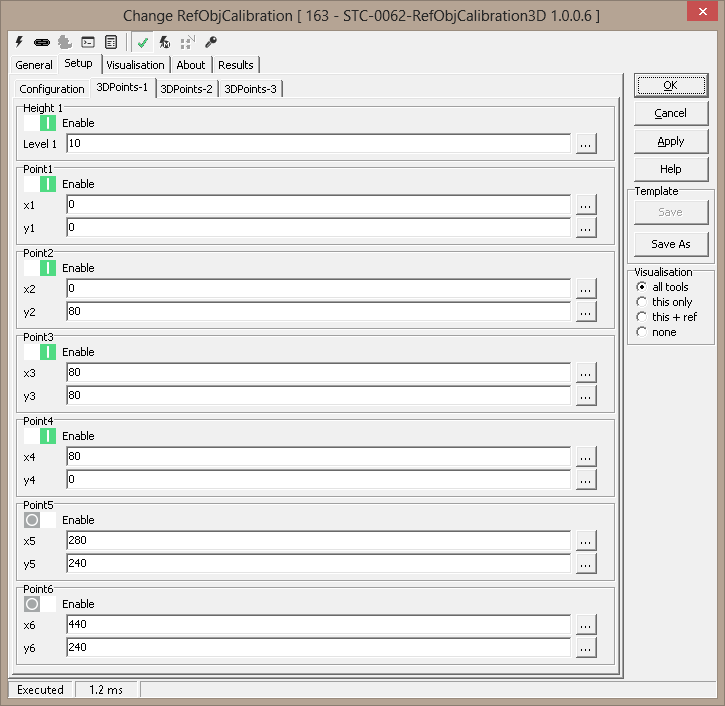

3DPoints-1
Defines Level 1 of the reference object.
3DPoints-2
Defines Level 2 of the reference object.
3DPoints-3
Defines Level 3 of the reference object.
|
Inputs to the Tool: |
| Inputs: |
1. Height 1
- Level 1
2. Point1
- x1
- y1
3. Point2
- x2
- y2
4. Point3
- x3
- y3
5. Point4
- x4
- y4
6. Point5
- x5
- y5
7. Verbose - Activate debug output to the
console window |
| Uses Reference: |
Yes |
| Uses Image: |
Uses image to draw upon |
| |
|

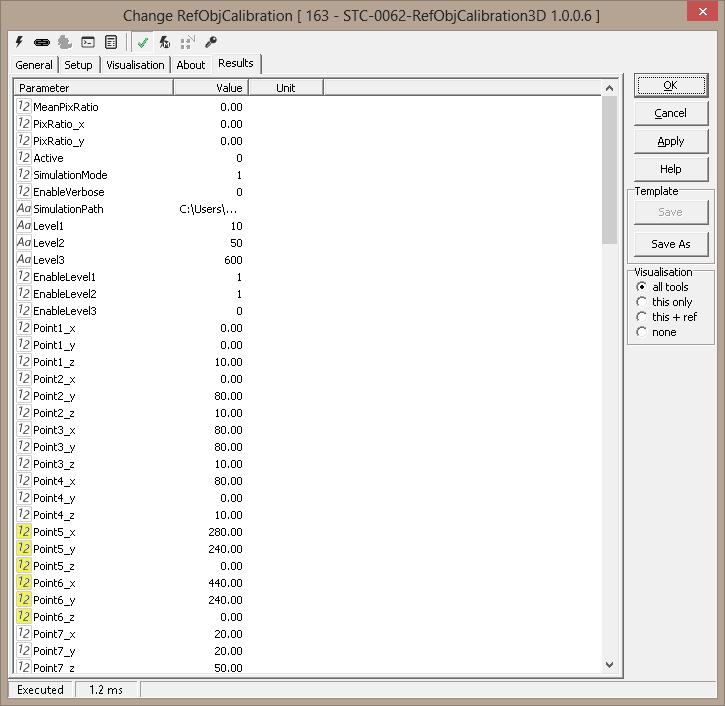

Results
|
Outputs from the Tool: |
| Outputs: |
|
|
Active |
|
|
|
|
SimulationMode |
|
|
|
|
EnableVerbose |
Bool |
|
|
|
Level1..3 |
Numeric |
Height value
of level N
of the
reference
object |
|
|
Point1..N |
3D Point |
Defines the
Nth 3D-point
of the
reference
object
If point not
existing or
activated
the point is
not valid |
|
1 |
StatusText: |
Text |
This is a
standard
output from
all Scorpion
tools and
describes
the
processing
status |
|
2 |
Status: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
error/success
of the tool
processing.
1 indicates
success and
0 indicates
error. |
|
3 |
AnalyzeTime: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
the time
taken by the
last
processing
operation of
this tool |
|
| Visualizations: |
None |
| Reference outputs: |
None |
| |
|
|
Templates: |
| Supports Templates: |
No |
| |
|
|
Profiles: |
| 1: |
STP-2012-0027-PolygonCorners |
| 2: |
SDP-2012-0048-Scorpion3DSmartCam-LocateGear |
|
