STC-0047-ConvexHull2D

The component is calculate the convex hull of a 2D polygon.

The STC-0047-ConvexHull2D component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

Setup

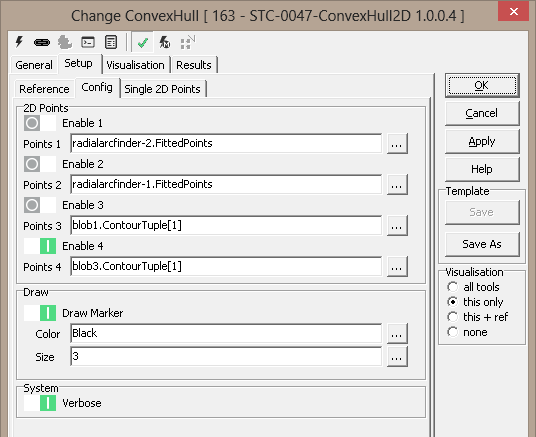

Configuration

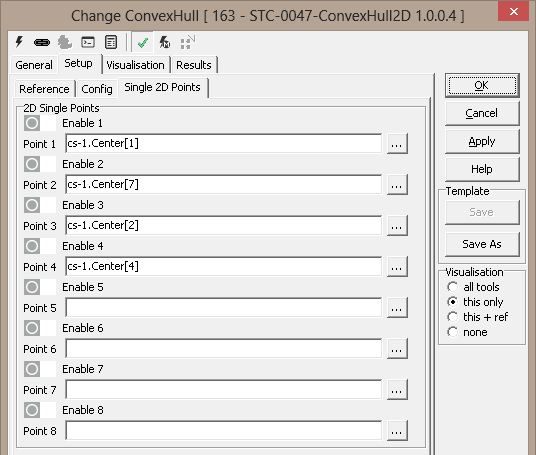

Single 2D Points



Inputs to the Tool:
Inputs: 1. Reference
2. Configuration
  - 2D points
  - Draw
    - Draw Marker
    - Color
    - Size
  - Verbose
3. Single 2D Points
Uses Reference: Yes
Uses Image: Uses image to draw upon

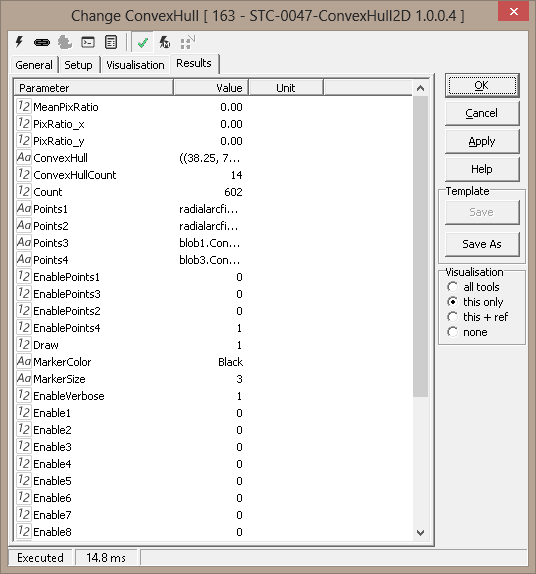

Results




Outputs from the Tool:
Outputs:
1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status
2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error.
3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations: None
Reference outputs: None


Templates:
Supports Templates: No

Profiles:
1: STP-2012-0026-ConvexHull
