The STC-0039-EllipseFit2D component is produced by Tordivel AS.
It is used to calculate the ellipse of an input 2D polygon. It can be
used to fit the circle points from RadialArcfinder to an ellipse. This can be
useful to improve the center location of the polygon if the polygon is an
ellipse.
All rights reserved copyright 2011-2013
Setup
Configuration
Single 2D Points
|
Inputs to the Tool: |
| Inputs: |
1. Reference
2. 2D Points
3. Draw
- Draw Rect
- Draw Markers
- Color
- Size
4. Verbose |
| Uses Reference: |
Yes |
| Uses Image: |
Uses image to draw upon |
| |
|

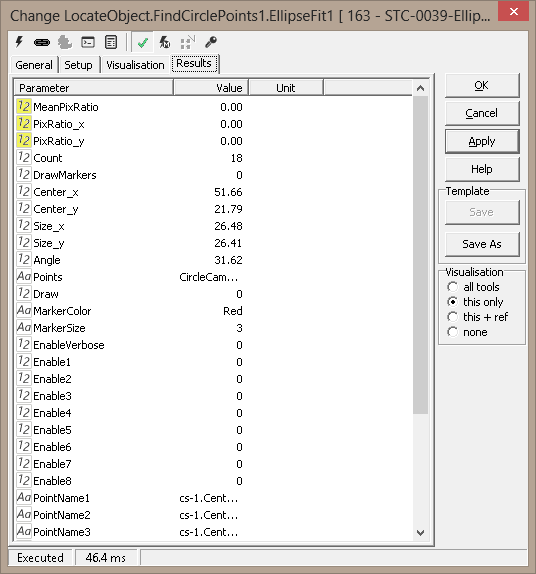

Results
|
Outputs from the Tool: |
| Outputs: |
|
1 |
StatusText: |
Text |
This is a
standard
output from
all Scorpion
tools and
describes
the
processing
status |
|
2 |
Status: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
error/success
of the tool
processing.
1 indicates
success and
0 indicates
error. |
|
3 |
AnalyzeTime: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
the time
taken by the
last
processing
operation of
this tool |
|
| Visualizations: |
None |
| Reference outputs: |
None |
| |
|
|
Templates: |
| Supports Templates: |
No |
| |
|
|
Profiles: |
| 1: |
SDP-2012-0048-Scorpion3DSmartCam-LocateGear |
|
