The component is used to display a result label on an image.
The
STC-0013-DisplayResult component is produced by Tordivel AS.
All rights reserved copyright 2011-2013

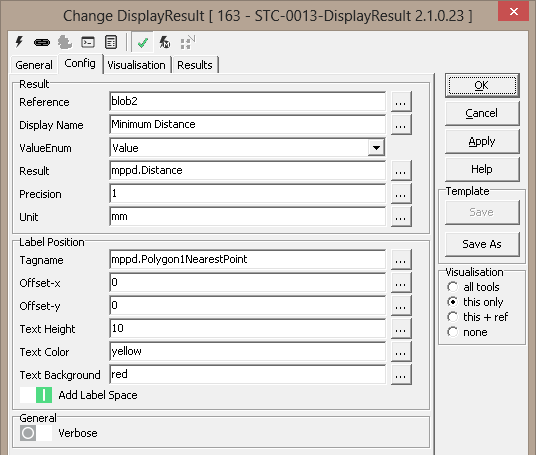

Setup
|
Inputs to the Tool: |
| Inputs: |
1. Reference
2. Display Name - caption
3. ValueEnum
4. Result
5. Precision - number of decimals
6. Unit
7. Tagname - where to draw the result uses
reference
8. Offset-x and y - static display offset
9. Text Height
10. Text Color
11. Text Background
12. Verbose - activate debug print to console |
| Uses Reference: |
Yes |
| Uses Image: |
Uses image to draw upon |
| |
|
Results
|
Outputs from the Tool: |
| Outputs: |
|
1 |
StatusText: |
Text |
This is a
standard
output from
all Scorpion
tools and
describes
the
processing
status |
|
2 |
Status: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
error/success
of the tool
processing.
1 indicates
success and
0 indicates
error. |
|
3 |
AnalyzeTime: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
the time
taken by the
last
processing
operation of
this tool |
|
| Visualizations: |
None |
| Reference outputs: |
None |
| |
|
|
Templates: |
| Supports Templates: |
No |
| |
|
|
Profiles: |
| 1: |
STP-2013-0006 BlobDistance |
| 2: |
STP-2012-0027-PolygonCorners |
| 3: |
STP-2012-0026-ConvexHull |
|
