The component is used to display a result label on an image.
The
STC-0053-SheetCalibration3D component is produced by Tordivel AS.
All rights reserved copyright 2011-2013

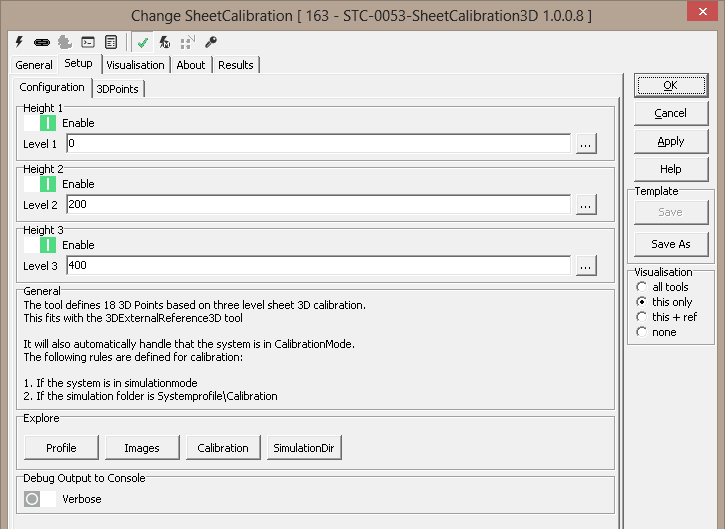

Setup
Configuration

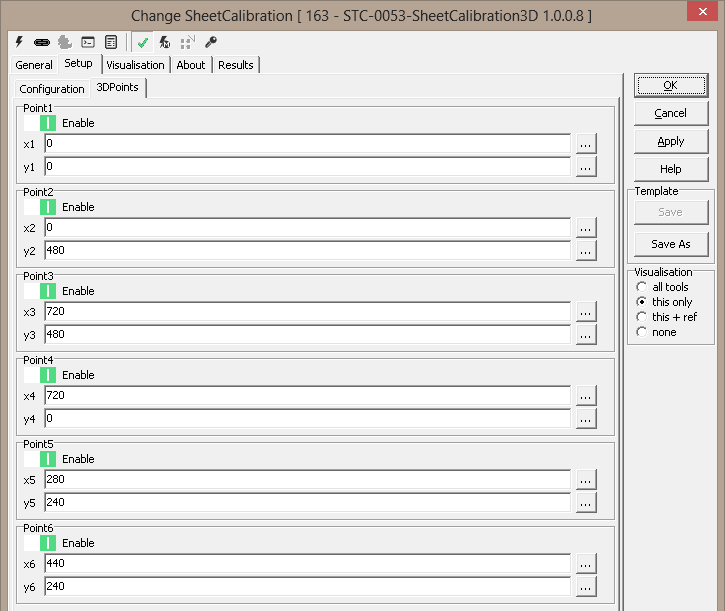

3D Points
|
Inputs to the Tool: |
| Inputs: |
1. Height 1, 2, 3
2. Explore
- Profile
- Images
- Calibration
- SimulationDir
3. Debug Output to Console
- Verbose
4. 3D Points |
| Uses Reference: |
Yes |
| Uses Image: |
Uses image to draw upon |
| |
|
Results
|
Outputs from the Tool: |
| Outputs: |
|
1 |
StatusText: |
Text |
This is a
standard
output from
all Scorpion
tools and
describes
the
processing
status |
|
2 |
Status: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
error/success
of the tool
processing.
1 indicates
success and
0 indicates
error. |
|
3 |
AnalyzeTime: |
Numeric |
This is a
standard
output from
all Scorpion
tools and
indicates
the time
taken by the
last
processing
operation of
this tool |
|
| Visualizations: |
None |
| Reference outputs: |
None |
| |
|
|
Templates: |
| Supports Templates: |
No |
| |
|
|
Profiles: |
| 1: |
SDP-0076-Box-Picking-from-Conveyor |
|
