The polygon match tool is design to mask out irrelevant parts of an image or to provide mask images for OpenCV functions.

The STC-0066-PolygonMaskImage component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

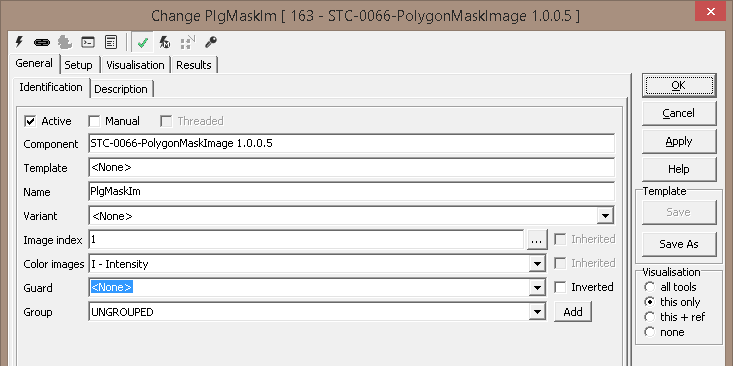

General



Configuration

Inputs to the Tool:
Inputs:	1. General   - Identification     - Active     - Manual     - Threaded     - Component     - Template     - Name     - Variant     - Image index     - Color images     - Guard     - Group   - Description 2. Setup   - Reference   - Config     - Input polygons       - Enable polygons 1-5       - Invert polygons     - Pixel source values       - Value set for masked pixels       - Use input image for unmasked pixels       - Unmasked value - ignored when option above is set     - Output       - Image name (blank to disable)
Uses Reference:	Yes
Uses Image:	Uses image to draw upon

Results

Outputs from the Tool:
Outputs:	1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status 2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error. 3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations:	None
Reference outputs:	None

Templates:
Supports Templates:	No

Profiles:
1:	STP-2012-0044-MaskImages
