The component is calculate the MinAreaRectangle of 2D polygon.

The STC-0045-MinAreaRect2D component is produced by Tordivel AS.

All rights reserved copyright 2011-2013

Setup

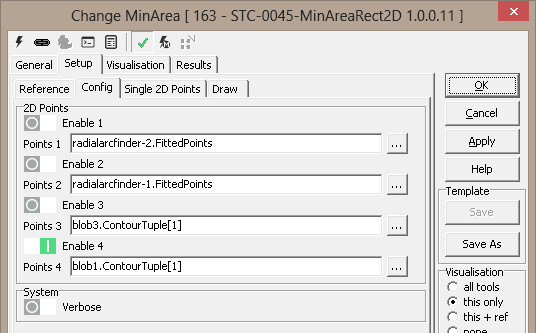

Configuration



Single 2D Points

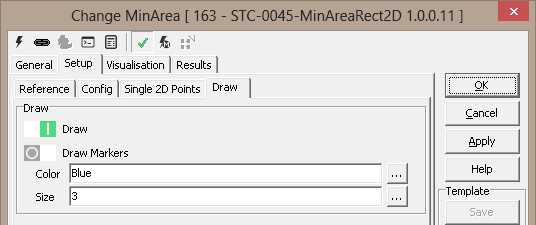

Draw

Inputs to the Tool:
Inputs:	1. Reference 2. Config   - 2D Points   - Draw     - Draw Marker     - Color     - Size   - Verbose 3. Single 2D Points 4. Draw   - Draw Markers   - Color   - Size
Uses Reference:	Yes
Uses Image:	Uses image to draw upon

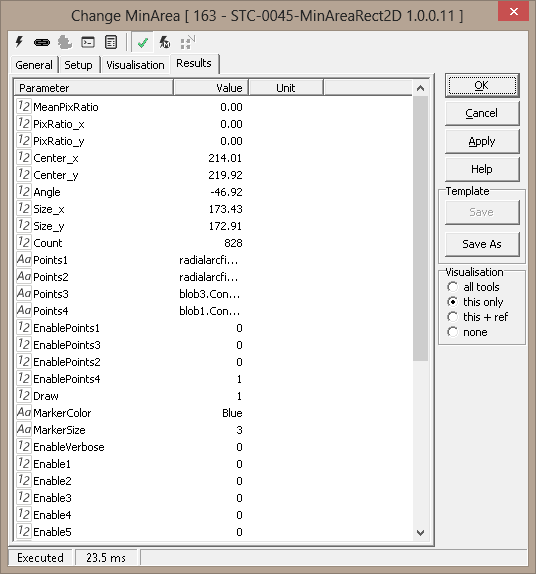

Results

Outputs from the Tool:
Outputs:	1 StatusText: Text This is a standard output from all Scorpion tools and describes the processing status 2 Status: Numeric This is a standard output from all Scorpion tools and indicates error/success of the tool processing. 1 indicates success and 0 indicates error. 3 AnalyzeTime: Numeric This is a standard output from all Scorpion tools and indicates the time taken by the last processing operation of this tool
Visualizations:	None
Reference outputs:	None

Templates:
Supports Templates:	No

Profiles:
1:	STP-2013-0006 BlobDistance
2:	STP-2012-0027-PolygonCorners
3:	STP-2012-ConvexHull
